ASU Self-Supporting FRP Strength Tube 7.0/8.0 HDPE Drop Cable

  • ASU Self-Supporting FRP Strength Tube 7.0/8.0 HDPE Drop Cable
  • ASU Self-Supporting FRP Strength Tube 7.0/8.0 HDPE Drop Cable
  • ASU Self-Supporting FRP Strength Tube 7.0/8.0 HDPE Drop Cable
Tempat asal CINA
Nama merek Ebocom
Sertifikasi ISO
Nomor model ASU
Kuantitas min Order 100 buah
Harga USD 0.08~0.1, Meter
Kemasan rincian Tas, karton atau cenderung
Waktu pengiriman 7-10 hari
Syarat-syarat pembayaran T/T, L/C, Western Union, Moneygram
Menyediakan kemampuan 80 km per hari

Hubungi saya untuk sampel gratis dan kupon.

ApaAPP:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.

x
Detail produk
Jaket Jaket tunggal Nama item Kabel ADSS MINI
Panjang kabel dapat disesuaikan Tipe serat Mode tunggal
Anggota kekuatan FRP Harapan hidup Lebih dari 30 tahun
Kemasan 3km/4km/5km per drum Model serat G.652 atau atas permintaan Anda
Panjang paket 2KM/3KM/5KM atau sesuai permintaan Anda Struktur kabel Uni-Loose Tube non armor
Menyoroti

ASU FRP strength tube drop cable

,

HDPE drop cable for fiber optic

,

self-supporting ADSS fiber optic cable
Tinggalkan pesan
Deskripsi Produk

Product Overview

Ebocom’s ASU Mini ADSS Fiber Optic Cable, also known as Mini ADSS Cable, is designed for aerial installations in FTTH networks, power line communication, and outdoor telecom projects.

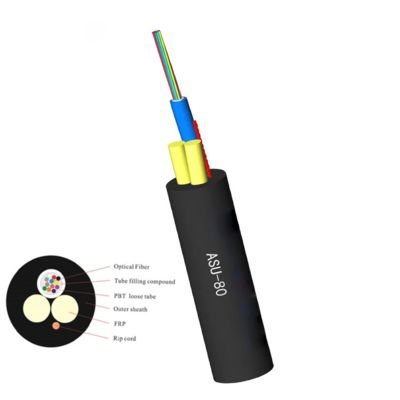

This compact cable features two parallel FRP (Fiber Reinforced Plastic) strength members and one central loose tube containing single-mode or multimode fibers.
The outer diameter can be customized to meet specific project requirements, ensuring a perfect fit for different spans and environmental conditions.
With its all-dielectric self-supporting design, the ASU Mini ADSS cable delivers excellent tensile strength, lightweight construction, and reliable long-distance signal transmission without the need for grounding or metallic support.

Key Features

  • Compact Mini ADSS Structure: Two FRP strength members + one central loose tube for superior mechanical strength and flexibility.

  • Custom Outer Diameter: Tailored to customer specifications for various aerial spans and installations.

  • All-Dielectric Design: No metallic components, safe for high-voltage environments, no grounding required.

  • Durable Jacket: UV-resistant, waterproof, and weatherproof sheath for long-term outdoor use.

  • High Performance: Low attenuation and stable optical transmission over long distances.

  • Wide Application: Ideal for FTTH deployment, pole-to-pole aerial wiring, power line communication, and rural broadband networks.

Typical Applications

  • FTTH and FTTx broadband networks

  • Power line communication and distribution networks

  • Rural and urban aerial fiber deployments

  • Pole-to-pole telecom projects

  • Industrial parks and smart grid communication

Technical Specifications

Item Specification
Fiber Type Single-mode G.652D / G.657A1 / G.657A2 (customizable)
Core Count 2–24 fibers (as required)
Structure Two parallel FRP strength members + central loose tube
Outer Diameter Customizable according to span and project needs
Strength Member FRP (Fiber Reinforced Plastic), high tensile strength
Jacket Material UV-resistant PE / LSZH (optional)
Installation Span Typically up to 100 m (custom span options available)
Operating Temperature -40°C to +70°C
Standards Complies with IEC 60794, ITU-T G.652D/G.657, RoHS

ASU Self-Supporting FRP Strength Tube 7.0/8.0 HDPE Drop Cable 0

Why Choose Ebocom ASU Mini ADSS Cable?

  • Flexible Customization: Diameter, fiber count, and jacket color all available to match your project.

  • Proven Quality: Produced in ISO-certified facilities with strict quality control and full-length testing.

  • Fast Delivery: High daily production capacity ensures quick lead times for urgent orders.

  • Global Export Experience: Shipped to telecom operators and contractors worldwide for FTTH and power line projects.
