xDetail produk
| Jenis kabel | OPGW | Tipe serat | G652D, G655, G657. |
|---|---|---|---|
| Bahan Lapisan Tengah | Unitube stainless steel | Inti serat | 24core |
| OEM | Tersedia | Suhu penyimpanan | -40 ° C hingga +70 ° C. |
| Paket transportasi | Drum kayu besi | Lapisan | ACS, AA |
| Model | OPGW | ||
| Menyoroti | 24 core OPGW fiber optic cable,OPGW cable for power transmission,central tube OPGW optical wire |
||
Deskripsi Produk
Product Description

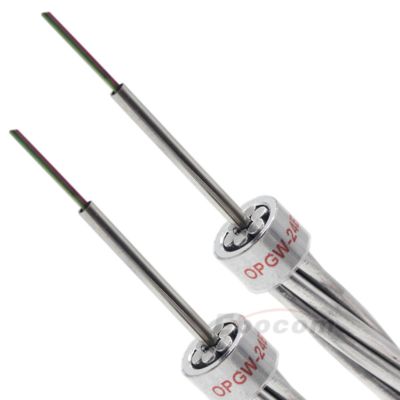

The Ebocom 24 Core OPGW (Optical Ground Wire) Fiber Optic Cable is designed for power transmission lines, integrating both optical communication and grounding functions in a single durable cable.

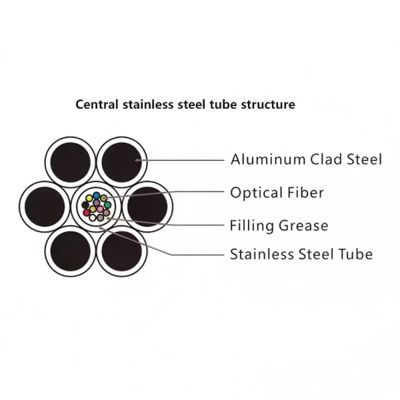

This model adopts a central stainless steel tube structure, housing up to 24 single-mode fibers, providing excellent mechanical strength, stable optical performance, and long-term reliability even in harsh outdoor environments.
Ebocom owns two independent stainless steel optical tube production lines and five OPGW stranding lines combining aluminum-clad steel wires and stainless steel tubes, ensuring consistent quality and fast delivery.
The cable’s high tensile strength and corrosion resistance make it ideal for installation on high-voltage transmission networks, delivering both electrical grounding and data transmission efficiently.
Key Features
-
24 Core Fiber Capacity: Supports long-distance and high-capacity communication across power transmission networks.
-
Central Tube Stainless Steel Structure: Excellent protection for fibers, providing superior compression and corrosion resistance.
-
High Tensile Strength: Aluminum-clad steel wires ensure mechanical reliability for power line installations.
-
Dual Functionality: Combines fiber optic communication and grounding in one cable.
-
Weather & Lightning Resistant: Performs reliably under extreme environmental and electrical conditions.
-
Factory Direct Supply: Produced in-house with complete control of quality and production timelines.
-
Customizable Design: Fiber type, lay direction, outer diameter, and structure can be adjusted for project needs.
Applications
-
Power transmission and distribution communication systems
-
High-voltage and ultra-high-voltage power grid networks
-
Smart grid and substation monitoring systems
-
Long-distance communication lines along power routes
-
Integration of communication and grounding functions
Technical Specifications
| Item | Specification |
|---|---|
| Fiber Type | ITU-T G.652D / G.657A1 Single Mode |
| Fiber Count | 24 cores |
| Structure Type | Central stainless steel tube |
| Strength Member | Aluminum-clad steel wires |
| Outer Diameter | Customizable per project requirements |
| Tensile Strength | 30–180 kN (depending on configuration) |
| Short Circuit Current | 10–25 kA / 1s (customizable) |
| Temperature Range | -40°C to +85°C |
| Standards | IEC 60794 / IEEE 1138 / ITU-T G.652D |
Why Choose Ebocom OPGW Cables
-
Strong Production Capacity: 2 stainless steel tube lines + 5 OPGW stranding lines ensure high output and fast delivery.
-
Reliable Quality: In-house testing for tensile, torsion, and optical performance ensures stability and durability.
-
Professional Engineering Team: Supports customization for different voltage levels and span lengths.
-
Proven Performance: Widely used in power utilities and communication projects across Asia, Africa, and the Middle East.
