24 Core OPGW Optical Fiber Composite Overhead Ground Wire ACS Stranded Structure
Hubungi saya untuk sampel gratis dan kupon.
ApaAPP:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Jenis kabel | OPGW | Tipe serat | G652D, G655, G657. |
|---|---|---|---|
| Bahan Lapisan Tengah | Unitube stainless steel | Inti serat | 24 inti |
| OEM | Tersedia | Suhu penyimpanan | -40 ° C hingga +70 ° C. |
| Paket transportasi | Drum kayu besi | Lapisan | ACS, AA |
| Model | OPGW | ||
| Menyoroti | 24 core OPGW fiber optic cable,OPGW overhead ground wire ACS,stranded structure OPGW cable |
||
Deskripsi Produk
Product Description
The Ebocom 24 Core OPGW (Optical Ground Wire) Fiber Optic Cable with stranded layer structure is specifically designed for high-voltage power transmission lines that require both grounding and communication capabilities in a single cable.

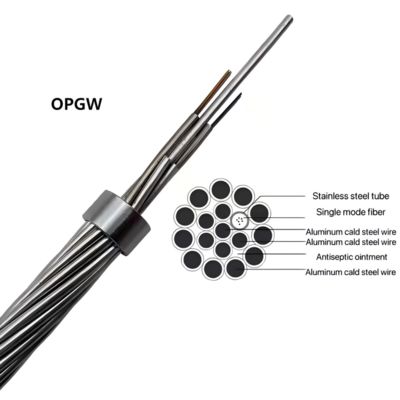

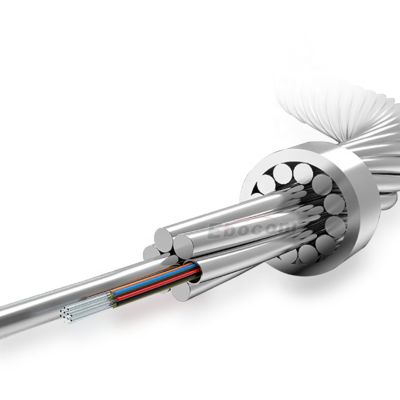

This structure features optical fibers contained in a stainless steel tube, which is stranded together with aluminum-clad steel and aluminum alloy wires to form a compact, high-strength cable.
The design provides excellent tensile performance, electrical conductivity, and lightning protection, making it suitable for long-span installations and harsh environments.
Key Features
-
24 Core Optical Fiber: Provides stable and high-speed data transmission for power grid communication systems.
-
Stranded Layer Design: Stainless steel tube with optical fibers stranded with aluminum-clad steel and aluminum alloy wires for superior mechanical protection.
-
Dual Functionality: Serves as both a grounding wire and a communication medium in transmission systems.
-
High Tensile Strength: Ideal for long-span installations in 110kV–500kV transmission lines.
-
Excellent Corrosion Resistance: All-metal structure with aluminum-clad steel wires ensures long service life in outdoor environments.
-
Efficient Power Line Integration: Simplifies network construction by combining optical communication and power grounding.
-
Customizable Options: Outer diameter, fiber type, and wire configuration can be designed according to project requirements.
Applications
-
Power grid communication and SCADA systems
-
Transmission and substation monitoring
-
High-voltage line communication networks
-
Smart grid and utility automation systems
-
Long-distance overhead installations requiring high tensile load
Technical Specifications
| Item | Specification |
|---|---|
| Fiber Type | ITU-T G.652D / G.657A1 Single Mode |
| Fiber Count | 24 cores |
| Structure Type | Stranded layer OPGW (stainless steel tube + ACS/AA wires) |
| Strength Member | Aluminum-Clad Steel (ACS) / Aluminum Alloy |
| Outer Diameter | 10.0–18.0 mm (customizable) |
| Tensile Strength | 50–180 kN (depending on configuration) |
| Short Circuit Current | 10–25 kA / 1s (customizable) |
| Operating Temperature | -40°C to +85°C |
| Standards | IEC 60794 / IEEE 1138 / ITU-T G.652D / GB/T 7424 |
Ebocom Advantages
-
Professional OPGW Manufacturer: Over 12 years of experience in producing OPGW and ADSS cables for global power utilities.
-
High Production Capacity: 2 stainless steel tube lines + 5 OPGW stranding lines ensure timely delivery even for large orders.
-
Quality You Can Trust: Each reel undergoes strict optical attenuation, tensile, and torsion testing.
-
Tailored Engineering Solutions: Customized designs available for different voltage levels, spans, and environmental conditions.
-
Global Project Experience: Widely applied in Asia, Africa, the Middle East, and South America for major power transmission networks.
